Flight Simulator Co-Pilot

by Charles Gulick

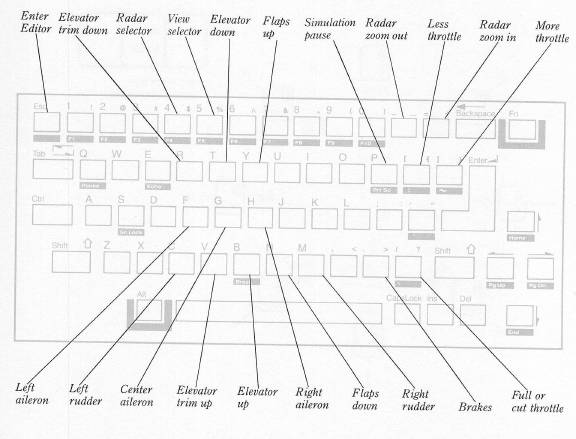

IBM PCjr Aircraft Controls

(figure)

For additional controls, press SHIFT and one of these keys:
Keys Result
SHIFT A Sets the altimeter to the current barometric pressure
SHIFT C Sets the COM radio frequency
SHIFT D Sets the heading indicator (directional gyro) to the magnetic compass
SHIFT G Raises or lowers the landing gear
SHIFT L Toggles the instrument and running lights on or off
SHIFT N Sets the NAV radio frequency
SHIFT T Sets the transponder “squawk”
SHIFT V Sets the OBI to a VOR frequency

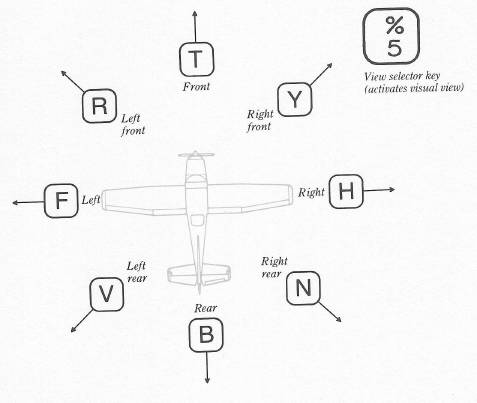

View Selector Controls for the IBM PCjr

(figure)

For the following controls enter the Editor and press one of these keys:
Key Result
Ins Saves the current flight parameters to mode library
S Saves the mode library to disk
PrtSc Loads the flight parameters from mode library
L Recalls mode library from disk
