Flight Simulator Co-Pilot

by Charles Gulick

APPENDIX
AIRCRAFT CONTROLS

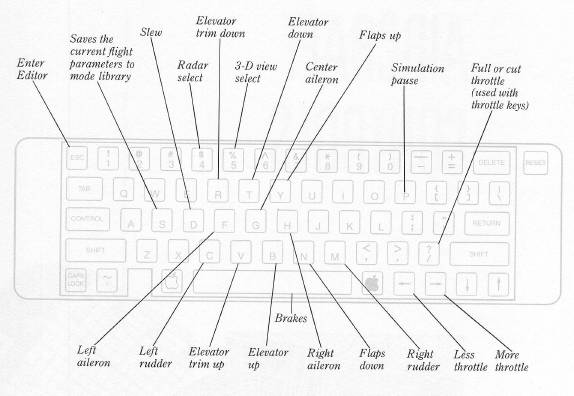

Apple Aircraft Controls

For additional controls, press CTRL or SHIFT and or more keys:
Keys	Result
CTRL B	Adjusts the altimeter
CTRL D	Adjusts the heading indicator
CTRL L	Toggles the lights on or off
CTRL X	Recalls mode library from disk
CTRL Z	Saves mode library to disk
SHIFT +	Recalls mode from library (resets the simulator)

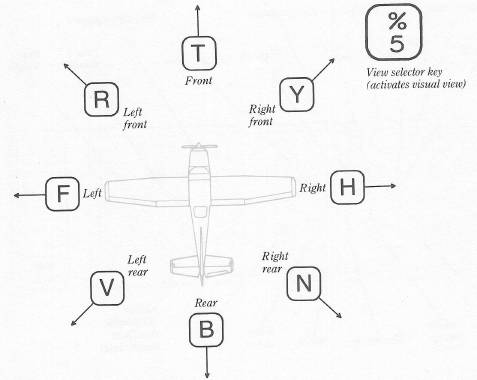

View Selector Controls for the Apple

For radio controls, press CTRL and one or more keys:
COM radio	CTRL C, >>>	Increase high digits (<<< for decrease)
	CTRL C, CRTL C, >>>	Increase low digits
NAV radio	CTRL N, 1	Select NAV1 for frequency changes
	CTRL N, 2	Select NAV2
	CTRL N, >>>	Increase high digits on selected NAV radio (<<< for decrease)
	CTRL N, CTRL N, >>>	Increase low digits
ADF	CTRL A, >>>	Rapidly press one, two, or three times to select digits 1, 2, or 3
VORS OBS	CTRK V, 1	Select VOR OBS1
	CTRL V, 2	Select VOR OBS2
	CTRL V, >>>	Increase bearing (<<< for decrease)
Transponder	CTRL T	Rapidly press one, two, three, or four times to select digits 1, 2, 3, or 4
	CTRL T, >>>	Increase digit (<<< for decrease)
Note: CTRL X is treated as CTRL T
