APPENDIX B

Chicago Sectional

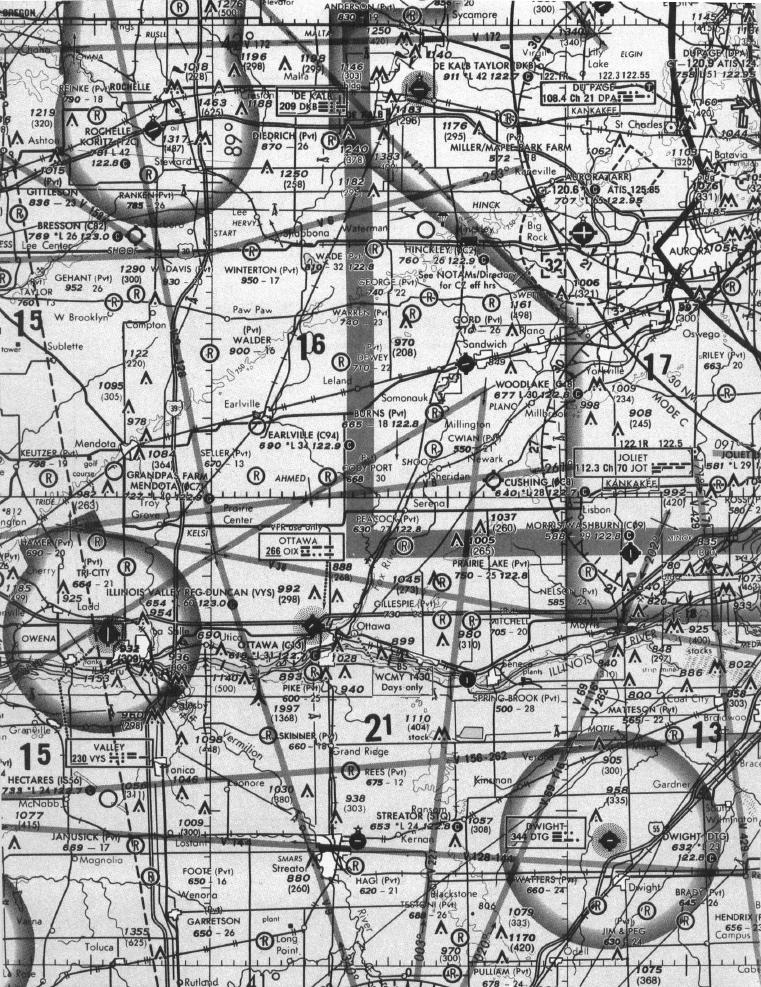

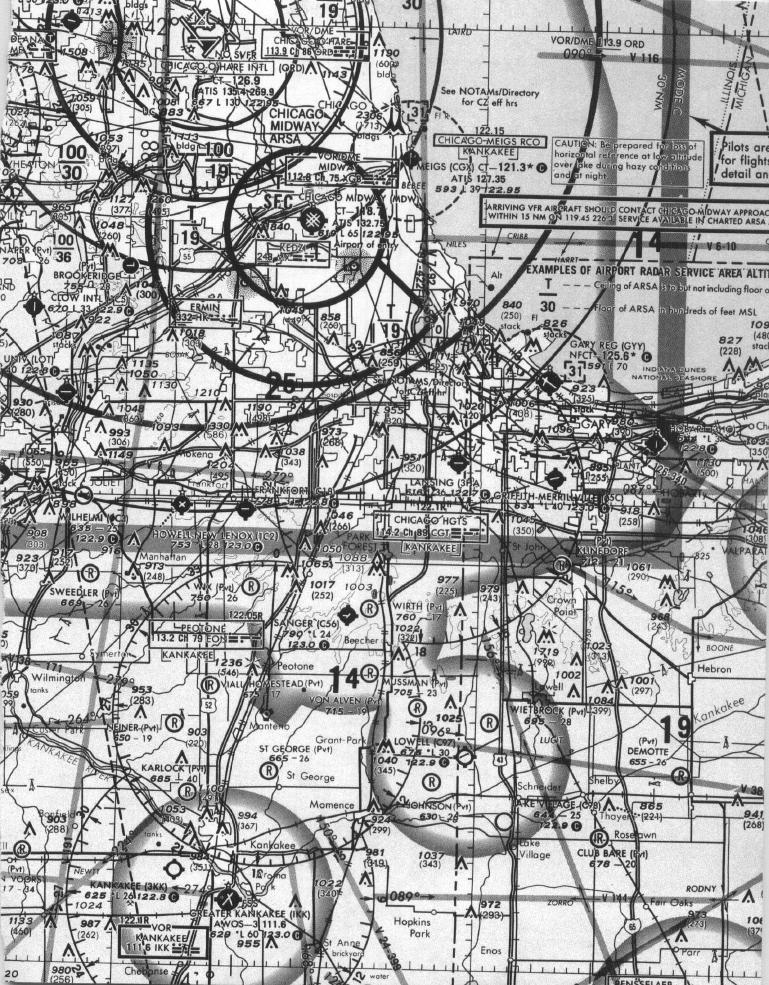

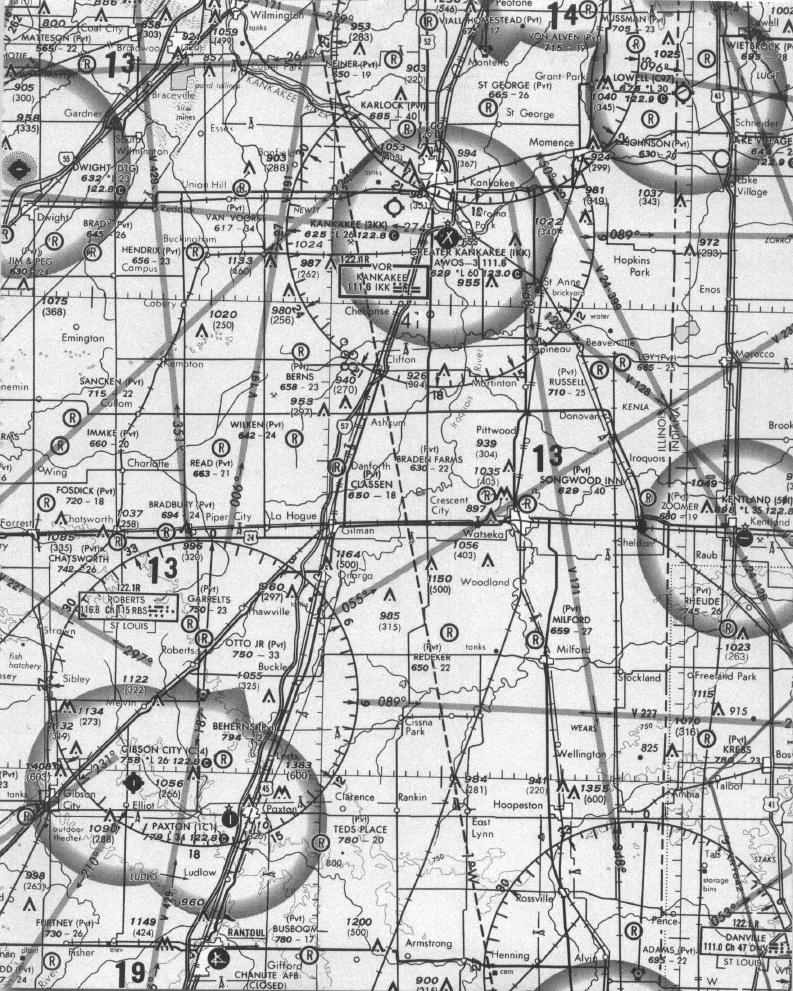

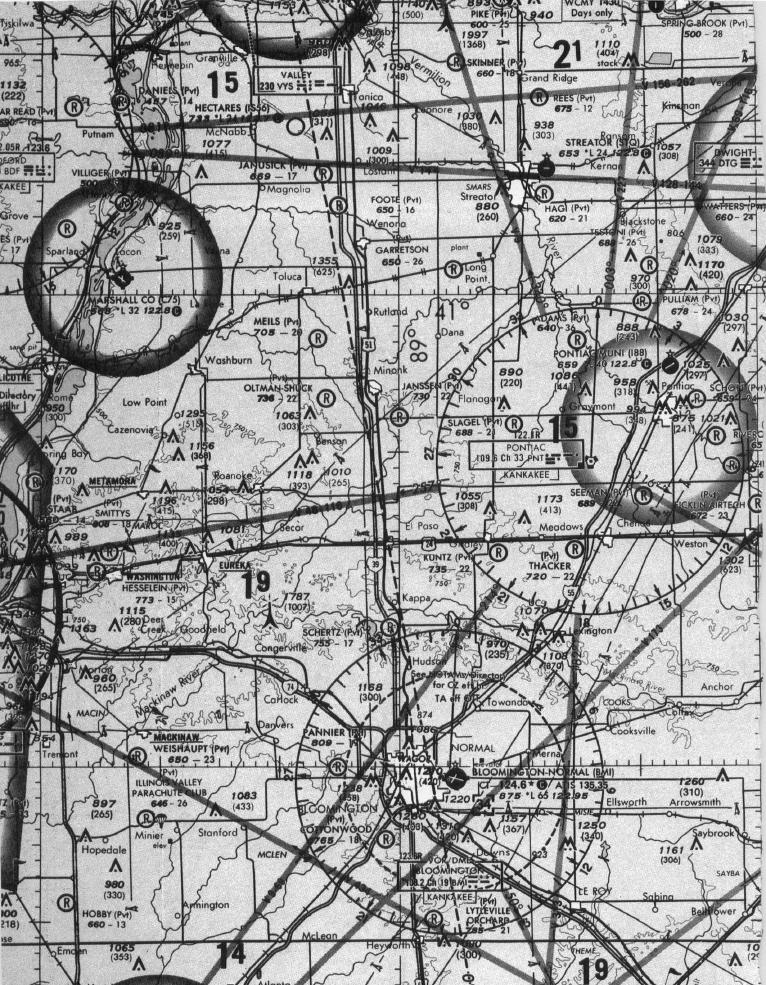

The map for the Chicago flight scenarios is in two parts. The first part covering the Northern area is on pages 254 and 255. The Southern area is on pages 256 and 257. The distance between latitude lines is 30 miles. Study the sectionals, there is a wealth of information on them. All the map sections overlap and are to scale. (see Figure B.1)

These sectional maps are obsolete and are not for real-world navigation.

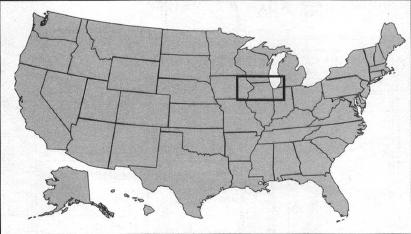

Figure B.1.

These sectional maps are obsolete and are not for real-world navigation.
