IFR Flights of 13MIKE

by Fred J. Calfior and Douglas W. Miller

APPENDIX C

Scenario Seven Approach Plates

These charts are obsolete and are not for real-world navigation.

Watsonville to Oakland

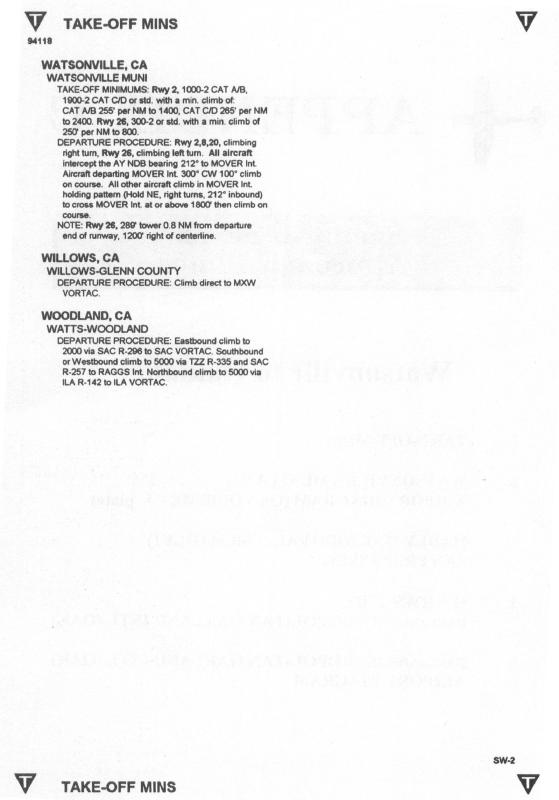

1. TAKE-OFF MINS

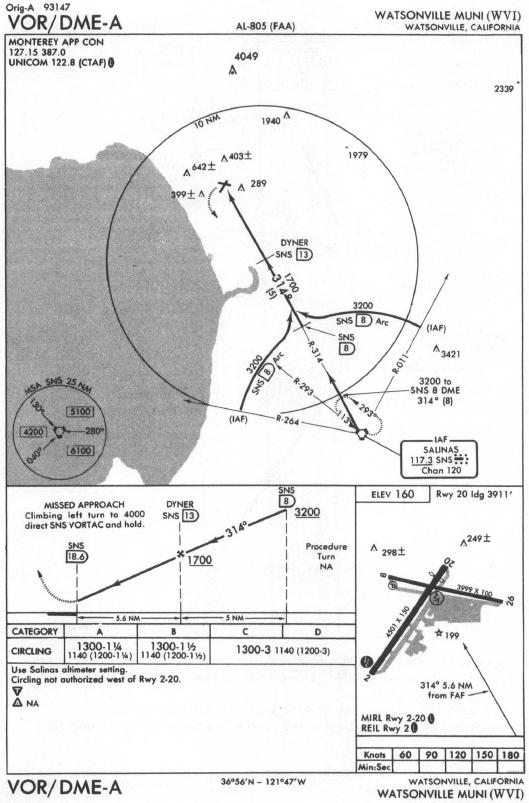

2. WATSONVILLE MUNI (WVI)

AIRPORT DIAGRAM (On VOR/DME - A plate)

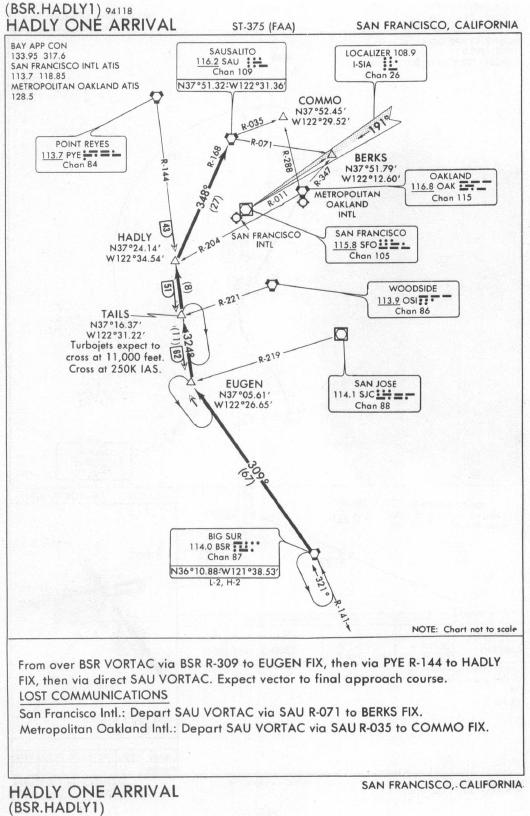

3. HADLY ONE ARRIVAL (BSR.HADLY1)

SAN FRANCISCO

4. ILS RWY 27R

OAKLAND/METROPOLITAN OAKLAND INTL (OAK)

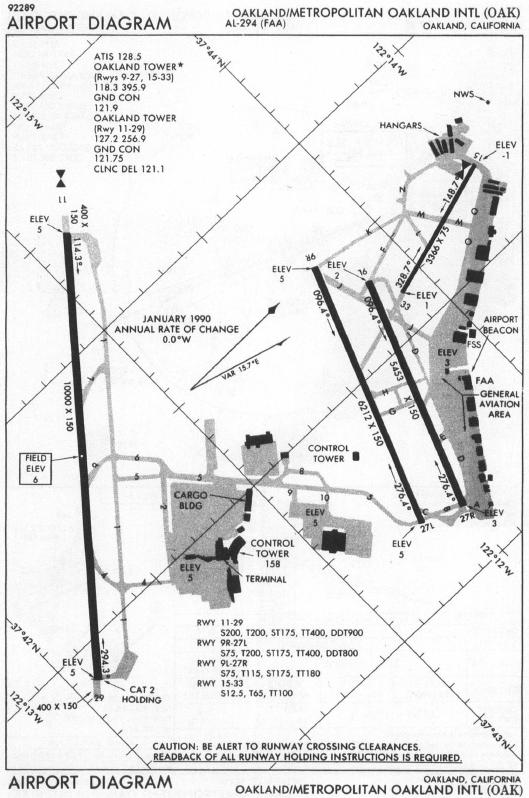

5. OAKLAND/METROPOLITAN OAKLAND INTL (OAK)

AIRPORT DIAGRAM
