IFR Flights of 13MIKE

by Fred J. Calfior and Douglas W. Miller

APPENDIX B

New York Low Altitude Enroute Chart L-25

These charts are obsolete and are not for real-world navigation.

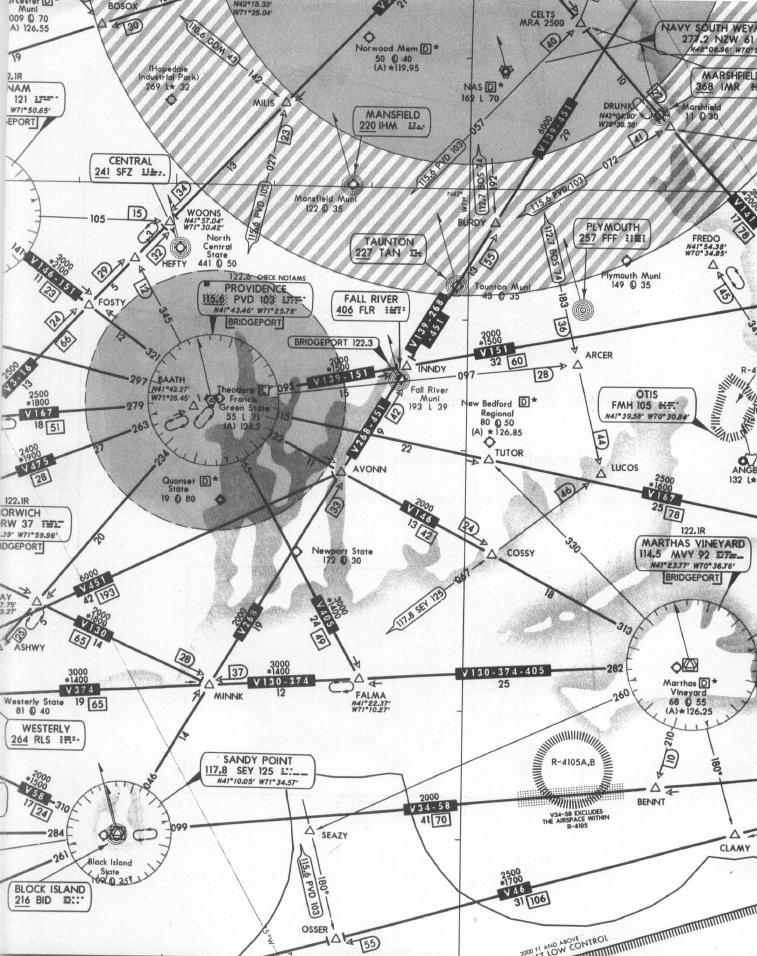

The Low Altitude Enroute Chart, for the Block Island scenario, is on the following page. The map scale is 1 = 8 NM. Study the chart, there is a wealth of information on it. The area that this section of the chart covers is illustrated in Figure B.6.

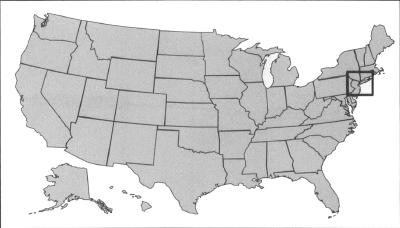

Figure B.6
